Question 1.P.54: Find the maximum power delivered to the load in the circuit ......

Find the maximum power delivered to the load in the circuit given below.

1.54
Step-by-Step
The 'Blue Check Mark' means that this solution was answered by an expert.
Learn more on how do we answer questions.

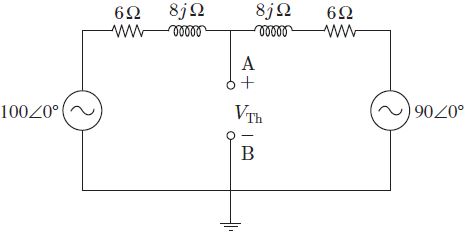

Now for maximum power transfer,

Applying Nodal analysis, we get

\begin{gathered} \frac{V_{ Th }-100 \angle 0}{6+8 j}+\frac{V_{ Th }-90 \angle 0}{8 j+6}=0 \\ V _{ Th }=100 \angle 0^{\circ} \end{gathered}

So,    Z_{ Th }=3+4 j  \Omega

The equivalent circuit is

But here, only R_{ L } is given

\begin{aligned} R_{ L } & =|3+4 j |=5  \Omega \\ I & =\frac{100 \angle 0}{3+4 j+5}=\frac{100 \angle 0}{3+4 j} \\ P_{\max } & =I^2 R_{ L }=\left(|I|^2 \times 5\right)=625  W \end{aligned}

1.54.1
1.54.2
