Q. 1.P.60

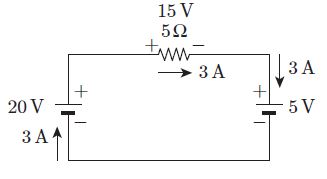

For the given circuit, calculate

\sum_{k=1}^3 v_x i_x

1.60

Step-by-Step

Verified Solution

From the circuit, we have

\begin{aligned} \sum_{k=1}^3 v_x i_x & =v_1 i_1+v_2 i_2+v_3 i_3=-20 \times 3+15 \times 3+5 \times 3 \\ & =-60+45+15=0  W \end{aligned}
