A steel beam is supported and loaded as shown in Fig. 9.36. The relevant second moments of area are such that $I^{(a)} = 2I^{(a)} = 2 × 10^{-5} m^{4}$ and Young’s modulus E for the beam material = 200 GN/m². Using the displacement based finite element method and representing each member by a simple beam element:

(a) determine the nodal displacements;
(b) hence, determine the nodal reactions, representing these on a sketch of the deformed geometry. Show that both force and moment equilibrium is satisfied.

Accepted Answer

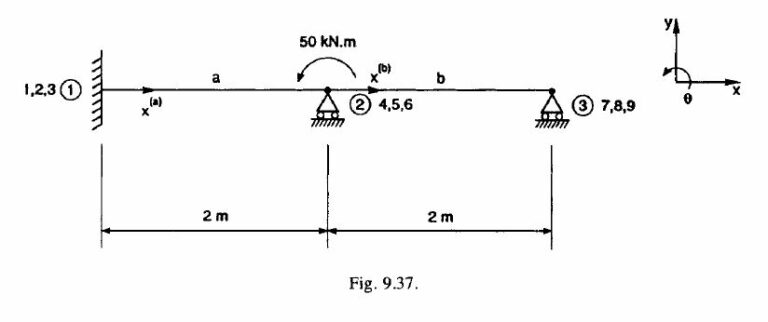

(a) Figure 9.37 shows suitable node, dof. and element labelling. Lack of symmetry prevents any advantage being taken to reduce the calculations. There are no redundant members. Employing two beam finite elements, (which is the least number in this case), both elements will have the same E/L, i.e,

[latex](E/L)^{(a)}=(E/L)^{(b)}=E/L[/latex]

However, the second moments of area will be different, such that

[latex]I^{(a)}=2I ext{ and } I^{(b)}=I[/latex]

and will be the only difference between the two element stiffness matrices. With reference to §9.8 and in the absence of axial forces, each element stiffness matrix with respect to local coordinates is given as

[latex][k^{(e)}]=(\frac{EI}{L} )^{(e)}\begin{bmatrix} 12/L^{2} & & \ 6/L &4 & symmetric & \ -12/L&-6/L&12/L^{2} & \6/L &2&-6/L & 4\end{bmatrix}[/latex]

The above local coordinate element stiffness matrix will, in this case, be identical to that with respect to global coordinates since the local and global axes coincide.

Substituting for both elements:

Element a

Recalling [latex]I^{(a)}=2I[/latex]

[latex][k^{(a)}]=(\frac{EI}{L} )\begin{bmatrix} 24/L^{2} & & \ 12/L &8 & symmetric & \ -24/L&-12/L&24/L^{2} & \12/L &4&-12/L & 8\end{bmatrix}[/latex]

Element b
Recalling [latex] I^{(b)} = I[/latex]

[latex][k^{(b)}]=(\frac{EI}{L} )\begin{bmatrix} 12/L^{2} & & \6/L &4 & symmetric & \ -12/L&-6/L&12/L^{2} & \6/L &2&-6/L & 4\end{bmatrix}[/latex]

The structural stiffness matrix can now be assembled. A dof. correspondence table can be used as an aid to assembly. However, observation of the relatively simple element connectivity, shows that the stiffness contributions for element a will occupy the upper left 4 × 4 locations, whilst those for element h will occupy the lower right 4 × 4 locations of the 6 × 6 structural stiffness matrix. The reduced structural stiffness matrix is due to the omission of axial terms, otherwise the matrix would have been of order 9 × 9. Hence, completing only those columns needed for the solution, gives

Corresponding to [latex]\upsilon _{1}= heta _{1}=\upsilon _{2}=\upsilon _{3}=0[/latex] (by omitting axial terms it has already been taken that [latex]u_{1}=u _{2}=u_{3}=0[/latex]), the partitioned equations reduce to

[latex]\begin{bmatrix} M_{2} \ M_{3} \end{bmatrix} =\frac{EI}{L} \begin{bmatrix} 12 & 2 \ 2 & 4 \end{bmatrix} \begin{bmatrix} heta _{2} \ heta _{3} \end{bmatrix}[/latex] i.e [latex]\left\{P_{\alpha } ight\} =[K_{\alpha \alpha }] \left\{P_{\alpha } ight\}[/latex]

Inverting [latex] [K_{\alpha \alpha}] [/latex] to enable a solution for the displacements from [latex]\left\{P_{\alpha } ight\} =[K_{\alpha \alpha }]^{-1} \left\{P_{\alpha } ight\}[/latex]

where adj [latex][K_{\alpha \alpha }]=\frac{EI}{L}\begin{bmatrix} 4 & -2 \ -2 & 12 \end{bmatrix}[/latex] and det [latex][K_{\alpha \alpha }]=44(EI/L)^{2}[/latex]

then [latex][K_{\alpha \alpha }]^{-1}=\frac{L}{44EI} \begin{bmatrix}4& -2 \ -2 & 12\end{bmatrix} [/latex] check [latex]\frac{L}{44 EI} \begin{bmatrix}4& -2 \ -2 & 12\end{bmatrix} \frac{EI}{L} \begin{bmatrix}12& 2 \ 2 &4\end{bmatrix} =[I][/latex]

The required displacements are found from

[latex]\left\{P_{\alpha } ight\} =[K_{\alpha \alpha }]^{-1} \left\{P_{\alpha } ight\}[/latex]

Substituting [latex]\begin{bmatrix} heta _{2} \ heta _{3} \end{bmatrix}=\frac{L}{44EI} \begin{bmatrix}4& -2 \ -2 & 12\end{bmatrix} \begin{bmatrix} M_{2} \ M_{3} \end{bmatrix}[/latex]

[latex]=\frac{2}{44 imes 200 imes 10^{9} imes 1 imes 10^{-5}} \begin{bmatrix}4& -2 \ -2 & 12\end{bmatrix}\begin{bmatrix} 5 imes 10^{4} \ 0\end{bmatrix}[/latex]

[latex]=2.2727 imes 10^{-4}\begin{bmatrix} 20 \ -10 \end{bmatrix} =\begin{bmatrix}4.545.10^{-3} \ -2.273.10^{-3} \end{bmatrix} _{rad}=\begin{bmatrix} 0.260 \ -0.130 \end{bmatrix}_{deg}[/latex]

The required nodal displacements are therefore [latex] heta _{2}=0.26° [/latex] and [latex] heta _{3}=-0.13° [/latex]
(b) With reference to §9.12, nodal reactions are obtained from

[latex]\left\{P_{\alpha } ight\} =[K_{\alpha \beta }] \left\{P_{\alpha } ight\}[/latex]

Substituting gives [latex]\begin{bmatrix} Y_{1} \ M_{} \Y_{2} \M_{2} \end{bmatrix} =\frac{EI}{L} \begin{bmatrix} 12/L & 0 \4 & 0 \ -6/L & 6/L \ -6/L & -6/L \end{bmatrix} \begin{bmatrix} heta _{2} \ heta _{3} \end{bmatrix}[/latex]

[latex]= \frac{200 imes 10^{9} imes 1 imes 10^{-5}}{2} \begin{bmatrix} 6 & 0 \ 4 & 0 \-3 & 3 \ -3 & -3\end{bmatrix} \begin{bmatrix}4.545 imes 10^{-3} \ -2.273 imes 10^{-3} \end{bmatrix}[/latex]

[latex]=\begin{bmatrix} 27.27 kN \ 18.18 kNm \ -20.45 kN \-6.82 kN \end{bmatrix}[/latex]

The required nodal reactions are therefore [latex]Y _{1} = 27.27 \ kN, \ M_{1} = 18.18 \ kNm, \ Y_{2} = -20.45 \ kN [/latex] and [latex] Y_{3} = -6.82 \ kN.[/latex]
Representing these reactions together with the applied moment on a sketch of the deformed beam, Fig. 9.38, and considering force and moment equilibrium, gives

[latex]\sum{F_{y}} =(27.27-20.45-6.82) \ kN=0[/latex]

[latex]\sum{M_{1}} =(18.18+50-20.45 imes 2-6.82 imes 4) \ kNm=0[/latex]
