Question 7.138: The bolt shank is subjected to a tension of 80 lb. Determine...

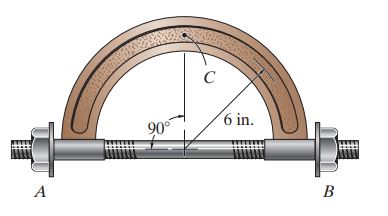

The bolt shank is subjected to a tension of 80 lb. Determine the internal normal force, shear force, and moment at point C.
\overset{+}{\longrightarrow } \Sigma F_x=0 ; \quad N_C+80=0 \quad N_C=-80 \mathrm{lb}
+↑\Sigma F_y=0 ; \quad V_C=0
\hookrightarrow +\Sigma M_C=0 ; \quad M_C+80(6)=0 \quad M_C=-480 \mathrm{lb} \cdot \text { in }
