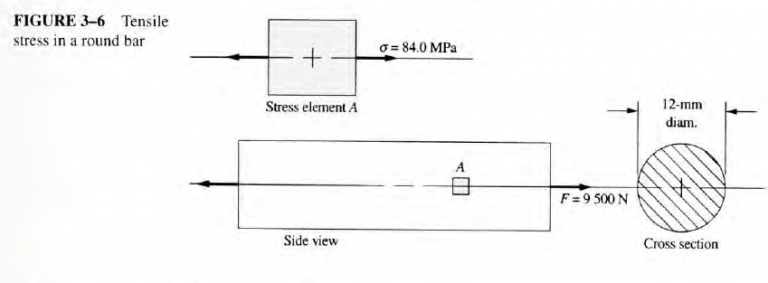

For the round bar subjected to the tensile load shown in Figure 3-6, compute the total deformation if the original length of the bar is 3600 mm. The bar is made from a steel having a modulus of elasticity of 207 GPa.

The Blue Check Mark means that this solution has been answered and checked by an expert. This guarantees that the final answer is accurate.
Learn more on how we answer questions.

Objective Compute the deformation of the bar.

Given Force = F = 9500 N; diameter = D = 12 mm.
Length = L = 3600 mm; E = 207 GPa

Analysis From Example Problem 3-1, we found that a = 84.0 MPa. Use Equation (3-3).

$\delta =\sigma L/E$ (3-3)

Results

$\delta =\frac{\sigma L}{E}=\frac{(84.0 \times 10^6 N/m^2) (3600 \ mm)}{(207 \times ^6N/m^2)}= 1.46 \ mm$
