Question 12.180E: R-410A is a 1:1 mass ratio mixture of R-32 and R-125. Find t...

R-410A is a 1:1 mass ratio mixture of R-32 and R-125. Find the specific volume at 80 F, 200 psia using Kays rule and the generalized charts and compare to Table F.9

The Blue Check Mark means that this solution has been answered and checked by an expert. This guarantees that the final answer is accurate.
Learn more on how we answer questions.

Kay’s rule Eq.12.84

\begin{aligned}& P _{ c  mix }=0.5 \times 838+0.5 \times 525=681.5   psia \\& T _{ c  mix }=0.5 \times 632.3+0.5 \times 610.6=621.45   R\end{aligned}

Reduced properties:      P _{ r }=\frac{200}{681.5}=0.293, \quad T _{ r }=\frac{539.67}{621.45}=0.868

Table F.1:   R = 1545.36 / 72.585 = 21.29 lbf-ft/lbm-R
Fig. D.1:    Z = 0.82

v =\frac{ ZRT }{ P }=\frac{0.82 \times 21.29 \times 539.67}{200 \times 144} \frac{ lbf – ft / lbm }{ psi \times in ^{2} / ft ^{2}}= 0 . 3 2 7   f t ^{3} / lbm

Table F.9:      v = 0 . 3 1 7 4 ~ f t ^{ 3 } / lbm

………………………………………….

Eq.12.84 : \left(P_{c}\right)_{\operatorname{mix}}=\sum_{i} y_{i} P_{c i}, \quad\left(T_{c}\right)_{\operatorname{mix}}=\sum_{i} y_{i} T_{c i}



F.1
F.1'

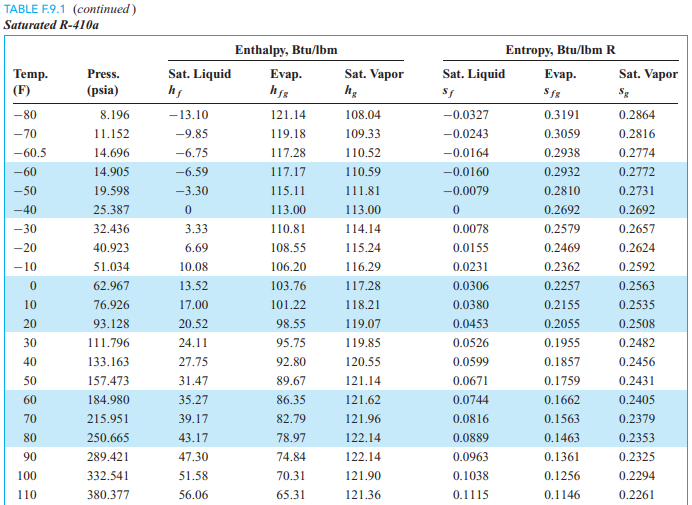

F.9.1
F.9.1'
F.9.1''
F.9.1'''
D.1
