Question 8.2.5: The current I is (a) 31.25 µA (b) 62.5 µA (c) 125 µA (d) 250...

The current I is

(a) 31.25 µA                                                           (b) 62.5 µA

(c) 125 µA                                                               (d) 250 µA

The Blue Check Mark means that this solution has been answered and checked by an expert. This guarantees that the final answer is accurate.
Learn more on how we answer questions.

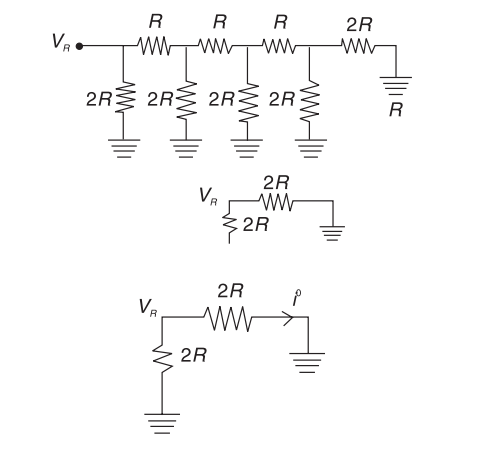

VR = 10V, R = 10 kΩ                              V+ = 0, V– = 0

⇒i=VR2R=1̸02×1̸0k=0.5mA\Rightarrow i=\frac{V_{R}}{2 R}=\frac{\not{10}}{2 \times \not{10} k}=0.5 mA



I=i2×2×2=0.58=6.25μAI=\frac{i}{2 \times 2 \times 2}=\frac{0.5}{8}=6.25 \mu A

Hence, the correct option is (b).

8.5
8.5a
8.5
