A system is modelled by the differential equations

x’ + 2x = f(t) (21.10)

2y’-y=x(t) (21.11)

In Equation (21.10) the input is f(t) and the output is x(t). In Equation (21.11), x(t) is the input and y(t) is the final output of the system. Find the overall system transfer function assuming zero initial conditions.

Step-by-Step

The 'Blue Check Mark' means that this solution was answered by an expert.
Learn more on how do we answer questions.

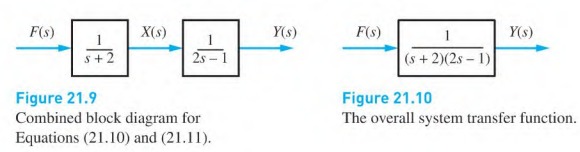

The output from Equation (21.10) is x(t); this forms the input to Equation (21.11). The block diagrams for Equations (21.10) and (21.11) are combined into a single block diagram as shown in Figure 21.9. Using Rule 1, the overall system transfer function can then be found:

G(s)=\frac{Y(s)}{F(s)}=\frac{1}{(s+2)(2 s-1)}

This transfer function relates Y(s) and F(s) (see Figure 21.10).
