Question D.2: For the circuit in Fig. D.15, find the dc node voltages and ......
For the circuit in Fig. D.15, find the dc node voltages and the current i_{o} .

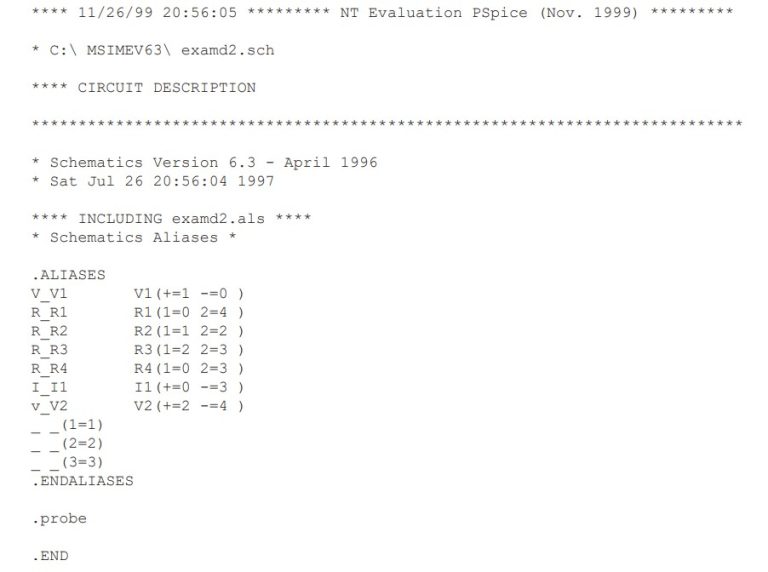

We use Schematics to create the circuit. After saving the circuit, click Analysis/Simulate to simulate the circuit. We obtain the results of the dc analysis from the output file or from the VIEWPOINT AND IPROBE parts, as shown in Fig. D.16. The netlist file is shown in Fig. D.17. Notice that the netlist contains the name, value, and connection for each element in the circuit. First example, the first line shows that the voltage source V1 has a value of 28 V and is connected between nodes 0 and 1. Figure D.18 shows the edited version of the output file. The output file also contains the Netlist file, but this was removed from Fig. D.18. From IPROBE or the output file, we obtain i_{o} as 3.25 mA.
