Determining the Relationship Between Geometric Shapes and the Resultant Dipole Moments of Molecules
Which of these molecules would you expect to be polar: Cl_2, ICl, BF_3, NO, SO_2?
Analyze
We will use the methods described above to determine the shape of the molecule, and then ascertain whether or not bond dipoles, if present, produce a net permanent dipole moment.
Polar: ICl, NO, SO_2 . ICl and NO are diatomic molecules with an electronegativity difference between the bonded atoms. SO_2 is a bent molecule with an electronegativity difference between the S and O atoms.
Nonpolar: Cl_2 and BF_3. Cl_2 is a diatomic molecule of identical atoms; hence no electronegativity difference. For BF_3, refer to Table 10.1. BF_3 is a symmetrical planar molecule (120° bond angles). The \begin{matrix} B-F \end{matrix} bond dipoles cancel each other.
| TABLE 10.1 Molecular Geometry as a Function of Electron-Group Geometry | ||||||
| Number of Electron Groups | Electron-Group Geometry | Number of Lone Pairs | VSEPR Notation | Molecular Geometry | Ideal Bond Angles | Example |
| 2 | linear | 0 | A \chi_2 |  |
180° | BeCl_2  |
| 3 | trigonal planar | 0 | A \chi_3 |  |
120° | BF_3  |
| trigonal planar | 1 | A \chi_2 E |  |
120° | SO_2{ }^a | |
| 4 | tetrahedral | 0 | A \chi_4 |  |
109.5° | CH_4  |
| tetrahedral | 1 | A \chi_3 E |  |
109.5° | NH_3 | |
| tetrahedral | 2 | A \chi_2 E_2 |  |
109.5° | OH_2 | |
| 5 | trigonal bipyramidal | 0 | A \chi_5 |  |
90°,120° | PCl_5  |
| trigonal bipyramidal | 1 | A \chi_4 E^b |  |
90°,120° | SF_4 | |
| trigonal bipyramidal | 2 | A \chi_3 E_2 |  |
90° | ClF_3 | |
| trigonal bipyramidal | 3 | A \chi_2 E_3 |  |
180° | \chi eF_2 | |
| 6 | octahedral | 0 | A \chi_6 |  |
90° | SF_6  |
| octahedral | 1 | A \chi_5 E |  |
90° | BrF_5 | |
| octahedral | 2 | A \chi_4 E_2 |  |
90° | \chi eF_4 | |
_{}^{a}\textrm{For }a discussion of the structure of SO_2, see page 428.
_{}^{b}\textrm{For }a discussion of the placement of the lone-pair electrons in this structure, see page 427.
Assess

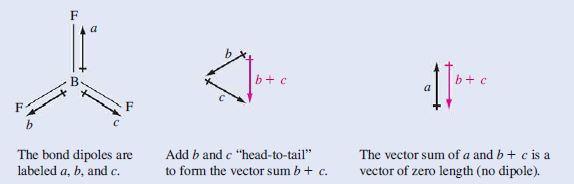

Bond dipoles are vector quantities. When adding them together, we must add them as vectors, that is, “head-to-tail,” as illustrated below.
