Question 4.8: Figure 4–21 shows a current-source biasing circuit. What is ...

Analog Fundamentals: A Systems Approach

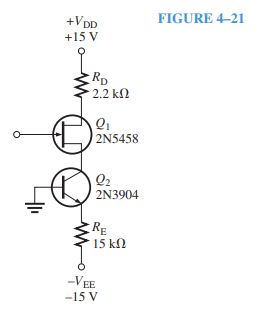

Figure 4–21 shows a current-source biasing circuit. What is $I_{D}$ ?

4.8

The blue check mark means that this solution has been answered and checked by an expert. This guarantees that the final answer is accurate.
Learn more on how we answer questions.

You should recognize emitter bias for the bipolar junction transistor but with no base resistor. Since the base is connected directly to ground, the emitter voltage is -0.7 V due to the forward-biased base-emitter pn junction. This means that the voltage across $R_{E}$ is 14.3 V and the current in $R_{E}$ is constant. From Ohm’s law, find the emitter current as

$I_{E} = \frac{V_{R_{E} } }{R_{E} } = \frac{14.3 V}{15 k\Omega } = 0.95 mA$

This current is provided to the JFET. Therefore, $I_{D}$ = 0.95 mA.
